CCTV & Network POE Switches

A CCTV PoE switch in Nepal is an important networking component for IP-based surveillance systems. Power over Ethernet (PoE) enables compatible IP cameras to receive both electrical power and network data through a single Ethernet cable, reducing the need for separate power adapters near every camera.

Safelincs Technologies offers CCTV and network PoE switches suitable for homes, offices, shops, warehouses, hotels, schools and commercial surveillance projects. When selecting a PoE switch for CCTV cameras, consider the number of cameras, total PoE power budget, Ethernet speed, uplink capacity and whether the network requires managed or unmanaged switching.

For a complete surveillance setup, explore our range of CCTV surveillance cameras and Network Video Recorders.

What Is a CCTV PoE Switch?

A PoE switch combines Ethernet network switching with Power over Ethernet. A typical IP CCTV setup may follow this connection:

IP Camera → Cat6 Cable → PoE Switch → NVR / Network

Without PoE, an IP camera may require one connection for network data and another power connection. With a compatible PoE system, power and data can be delivered through the Ethernet connection.

This makes CCTV installation easier, especially when cameras are installed on ceilings, exterior walls, warehouses or other locations where individual electrical sockets are difficult to provide.

For network cabling, explore our Cat6 Network Cable range.

How Does PoE Work with CCTV Cameras?

In a PoE system, the switch works as Power Sourcing Equipment (PSE) while the IP camera operates as the Powered Device (PD).

Compatible PoE equipment identifies the power requirements of the connected device before supplying power.

Common standards include:

The actual power received by the device can be lower because some electrical power is lost through the cable.

Therefore, always compare:

Camera Power Requirement + Number of Cameras + Total PoE Budget

before choosing a switch.

Why Use a PoE Switch for CCTV Cameras?

1. Power and Data Through One Cable

PoE allows compatible cameras to receive both network data and electrical power over Ethernet cabling. This reduces cabling complexity and simplifies CCTV installation.

2. Centralized Power Management

Instead of powering cameras individually, multiple cameras can receive power from the PoE switch.

The switch and Network Video Recorder can also be connected to an appropriately sized UPS system where backup operation is required.

3. Easier CCTV Expansion

Additional cameras can be added when the system has sufficient:

• PoE ports

• PoE power budget

• NVR channels

• Network bandwidth

• Storage capacity

For this reason, CCTV systems should ideally be designed with some spare capacity for future expansion.

How to Choose the Right CCTV PoE Switch

Selecting the right PoE switch for CCTV requires more than simply checking the number of available ports.

1. Number of CCTV Cameras

First determine how many IP cameras need to connect to the switch. A small shop or home may require only a few cameras, while offices, hotels, warehouses and commercial properties may require considerably larger switching capacity. It is also important to allow room for future expansion.

For example: 8 Current Cameras + 2 Planned Cameras = Capacity for at Least 10 Camera Connections

Customers should therefore select the appropriate switch configuration according to both current and future requirements.

​

2. Calculate the PoE Power Budget

The PoE power budget tells you how much total electrical power a switch can supply to connected PoE devices.

For example: 8 cameras × 8W = 64W total camera requirement

A switch should provide enough usable PoE capacity to operate all cameras simultaneously while maintaining appropriate power headroom.

Higher-power devices such as PTZ cameras, cameras with powerful infrared illumination or other advanced network devices may require more power.

Do not assume that an 8-port PoE switch can automatically power any eight cameras.

Check:

• Maximum camera power consumption

• Maximum power per PoE port

• Total switch PoE budget

• Supported PoE standard

3. Fast Ethernet vs Gigabit PoE Switch

Another important specification is Ethernet speed.

• Fast Ethernet: typically supports up to 100 Mbps.

• Gigabit Ethernet: typically supports up to 1,000 Mbps.

Many individual CCTV cameras do not require a full Gigabit connection. However, the combined bandwidth from multiple cameras can become important at the switch uplink.

For example: 8 cameras × 6 Mbps average bitrate = approximately 48 Mbps

Larger installations with high-resolution cameras, higher frame rates or increased bitrates can generate significantly more traffic.

For larger CCTV or general network installations, customers can also explore our Managed Network & PoE Switches.

4. Check the Uplink Capacity

The uplink connects the PoE switch to other network equipment such as:

• NVR

• Router

• Core network switch

• Server

• Network infrastructure

If several IP cameras send video through one uplink, the uplink must have sufficient bandwidth to carry the combined traffic.

For larger CCTV systems, Gigabit uplinks can help prevent network bottlenecks.

5. Managed vs Unmanaged PoE Switch

PoE switches can generally be divided into managed and unmanaged models.

An unmanaged PoE switch may be sufficient for a simple CCTV installation. A managed switch may be more appropriate for commercial or enterprise networks where VLANs, traffic monitoring, port configuration and advanced network management are required.

Explore Managed Network & PoE Switches for more advanced networking requirements.

6. Calculate CCTV Network Bandwidth

The bandwidth required by IP cameras depends on several factors:

• Camera resolution

• Frame rate

• Video codec

• Bitrate

• Number of cameras

• Main stream and sub-stream settings

• Scene complexity

Modern CCTV systems commonly use H.264 or H.265 compression to reduce video bandwidth and storage requirements.

A basic calculation is: Camera Bitrate × Number of Cameras = Approximate Combined Camera Traffic

The calculated traffic should remain below the available switch and uplink bandwidth.

Always maintain additional network capacity instead of designing a CCTV network to operate continuously at its theoretical maximum.

7. Consider Cable Quality and Distance

Ethernet network installations commonly operate within approximately 100 metres per standard Ethernet channel, depending on cable type, termination and installation conditions.

Some CCTV PoE switches provide extended transmission modes for longer-distance installations. However, these modes may operate at reduced network speeds and should always be checked against the individual switch specifications.

Using quality Ethernet cabling is equally important.

Poor cable quality or improper termination can contribute to:

• Packet loss

• Voltage drop

• Camera disconnection

• Unstable PoE operation

• Intermittent video transmission

For surveillance and structured network installations, browse our Cat6 Network Cable products.

CCTV PoE Switch Price in Nepal

The PoE switch price in Nepal varies according to the technical specifications and capabilities of the switch.

Customers should therefore compare specifications rather than selecting a switch based only on price.

Product prices can also change according to availability and promotional offers, so the products displayed on this category page should be used for the latest pricing.

Shop CCTV PoE Switches by Brand

Safelincs Technologies provides dedicated PoE switch ranges from different surveillance and networking manufacturers.

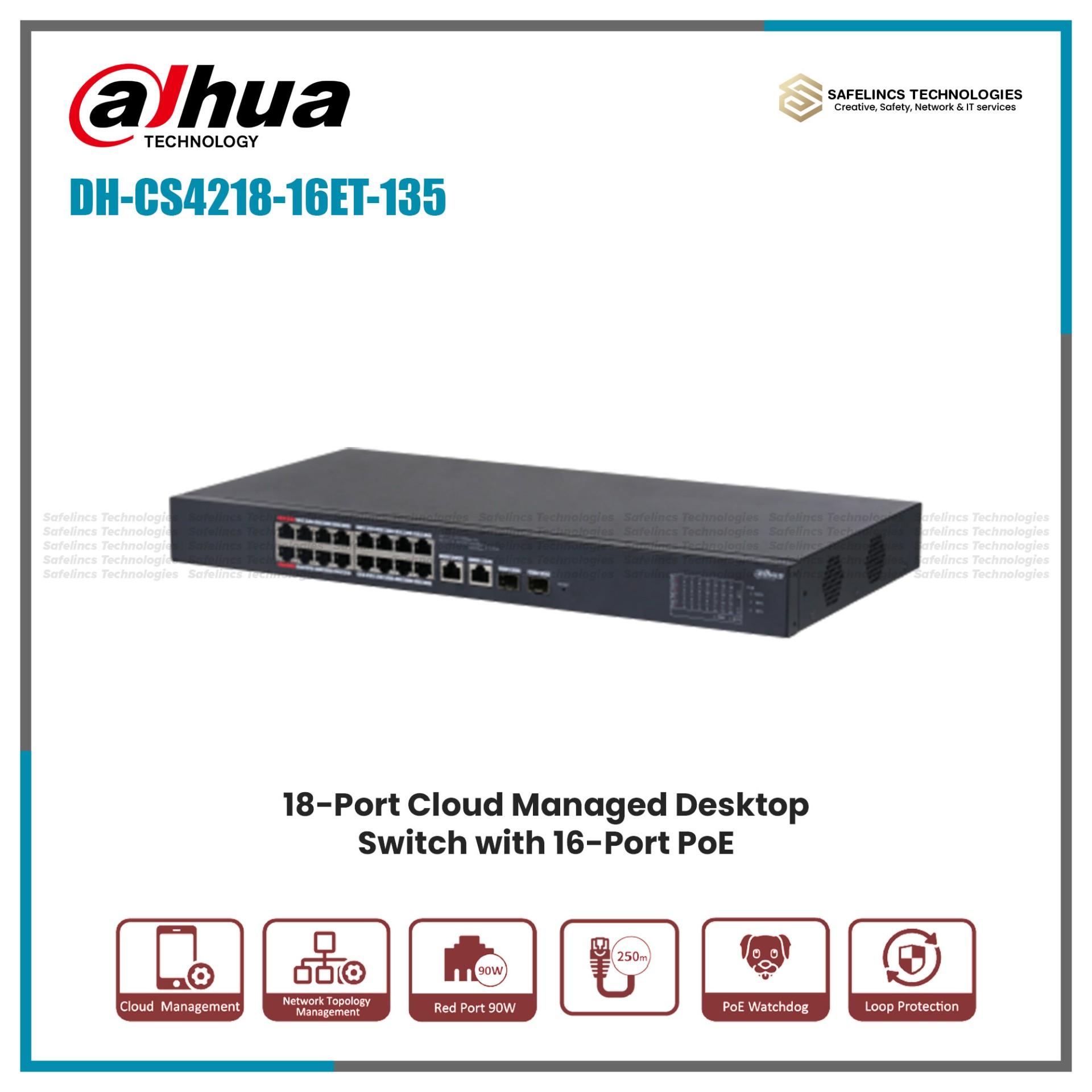

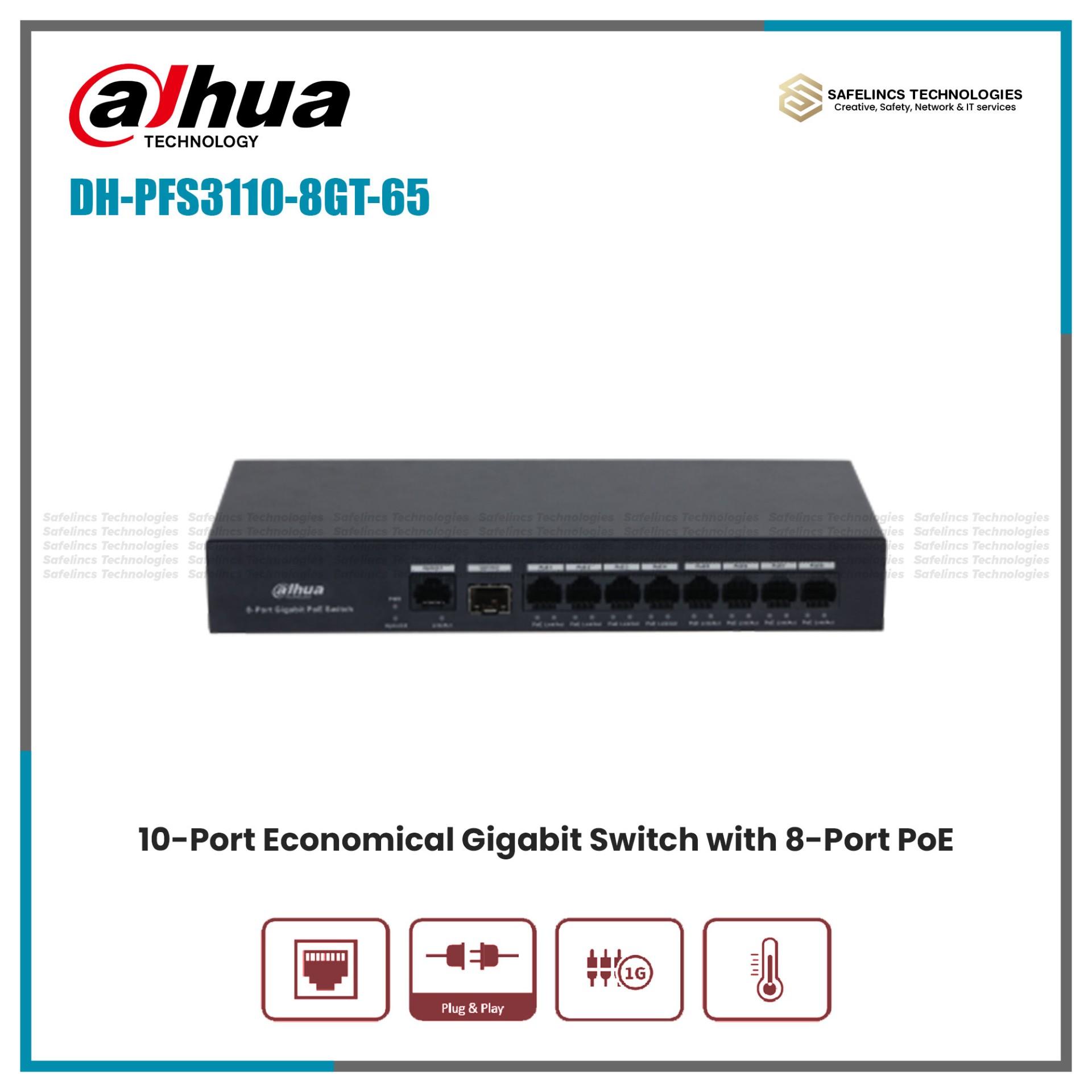

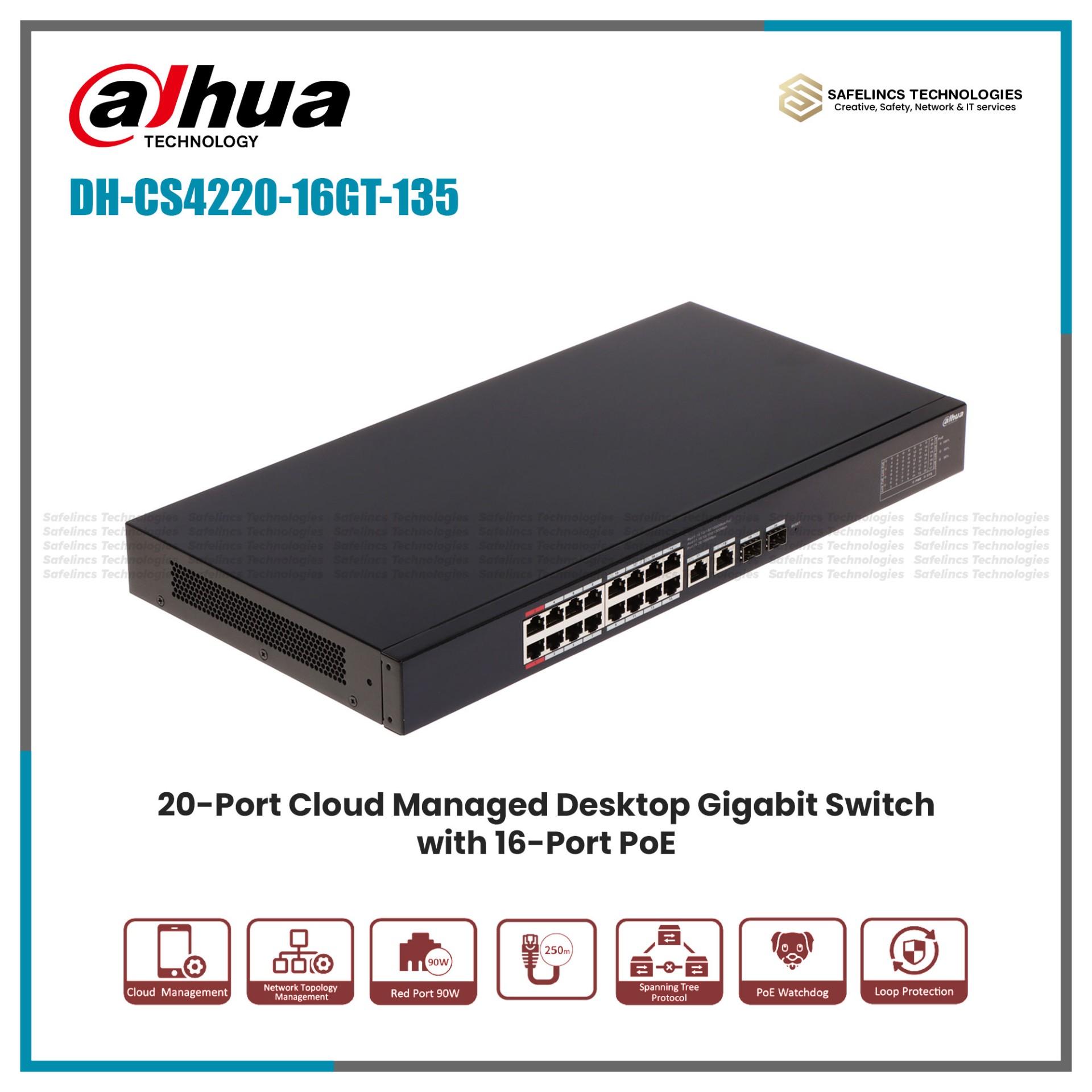

For Dahua networking and CCTV installations, browse Dahua PoE Switches.

For Hikvision IP surveillance systems, explore Hikvision PoE Switches.

For networking projects requiring Reyee or Ruijie equipment, browse Reyee & Ruijie CCTV PoE Switches.

You can also explore the dedicated Safelincs PoE Switch range.

Choose the brand and model according to your required PoE capacity, network speed, power budget, uplink configuration and management features.

PoE Switches for Different CCTV System Sizes

Different surveillance projects require different networking capacities.

The correct switch should not be selected only according to the number of cameras.

Also consider: Port Capacity + PoE Budget + Bandwidth + Uplink + Future Expansion

Connecting a PoE Switch to an NVR

An external PoE switch can be used to connect multiple network cameras to an NVR through the local IP network.

A typical architecture is:

IP Cameras → PoE Switch → LAN / Network→ NVR→ Monitor / Remote Viewing

The NVR should support the required:

• Number of camera channels

• Incoming network bandwidth

• Camera resolutions

• Video codecs

• Storage capacity

• Camera compatibility

Browse our Network Video Recorders to compare recorder options for different CCTV system sizes.

Network Racks for Larger CCTV Installations

Commercial CCTV installations often include several networking components such as:

• PoE switches

• NVRs

• Patch panels

• Routers

• Power distribution units

• Network cabling

A properly selected network cabinet can help organize, protect and manage these components.

For structured CCTV and network installations, explore our Network Racks & Server Rack Cabinets.

Build a Complete IP CCTV Surveillance System

A reliable IP CCTV system requires compatible components throughout the complete network.

A typical system architecture is:

IP Camera → Cat6 Cable → PoE Switch → NVR → Surveillance Storage → Monitor / Mobile

Safelincs Technologies provides the main components required to build this type of system.

Browse CCTV Surveillance Cameras to select cameras according to resolution, lens, night vision and monitoring requirements.

Choose a compatible Network Video Recorder according to camera count, incoming bandwidth and recording requirements.

Use suitable Cat6 Network Cable for network connectivity between system components.

For structured commercial installations, organize networking equipment using Network Racks & Server Rack Cabinets.

Customers looking for a predefined surveillance setup can also explore CCTV Camera Packages for Home & Office.

Why Buy CCTV PoE Switches from Safelincs Technologies?

Safelincs Technologies provides CCTV PoE switches in Nepal for residential, commercial and professional surveillance networks.

Customers can compare different PoE capacities, network speeds, power budgets, uplink configurations and management features according to their CCTV requirements.

Safelincs also provides supporting surveillance infrastructure including CCTV cameras, Network Video Recorders, Cat6 network cables, managed network switches and network rack cabinets, allowing customers to build complete IP surveillance systems from compatible components.

Frequently Asked Questions

What is a CCTV PoE switch?

A CCTV PoE switch is an Ethernet network switch that can provide network connectivity and electrical power to compatible IP cameras through Ethernet cabling.

What is the PoE switch price in Nepal?

The PoE switch price in Nepal depends on port capacity, total PoE power budget, network speed, management functionality, uplink configuration, supported PoE standard and brand.

How do I calculate the required PoE power budget?

Check the maximum wattage requirement of every connected camera and calculate their total power consumption. The switch should provide enough total PoE power for all connected devices with appropriate additional capacity.

Can an 8-port PoE switch support eight CCTV cameras?

It may support eight cameras if it has eight suitable PoE ports, but port count alone is not enough. The total PoE budget, per-port power, network bandwidth and individual camera requirements must also be checked.

Do CCTV cameras require Gigabit PoE?

Many individual IP cameras use less than 100 Mbps, but Gigabit connectivity can be valuable for switch uplinks carrying combined traffic from multiple cameras and for larger surveillance networks.

What is the difference between managed and unmanaged PoE switches?

Unmanaged switches are generally plug-and-play. Managed switches provide additional control such as VLAN configuration, traffic monitoring and port management. For advanced requirements, explore Managed Network & PoE Switches.

Can I connect a PoE switch to an NVR?

Yes. Compatible IP cameras can connect to an external PoE switch, which can communicate with an NVR through the local network. The NVR must have sufficient channels and incoming bandwidth. Browse Network Video Recorders for compatible recording options.

Can PoE CCTV cameras use Cat6 cable?

Yes. Compatible PoE cameras can use suitable Cat6 Ethernet cabling for network data and electrical power. Cable quality, distance and termination should be considered during installation. Browse Cat6 Network Cable for available options.
